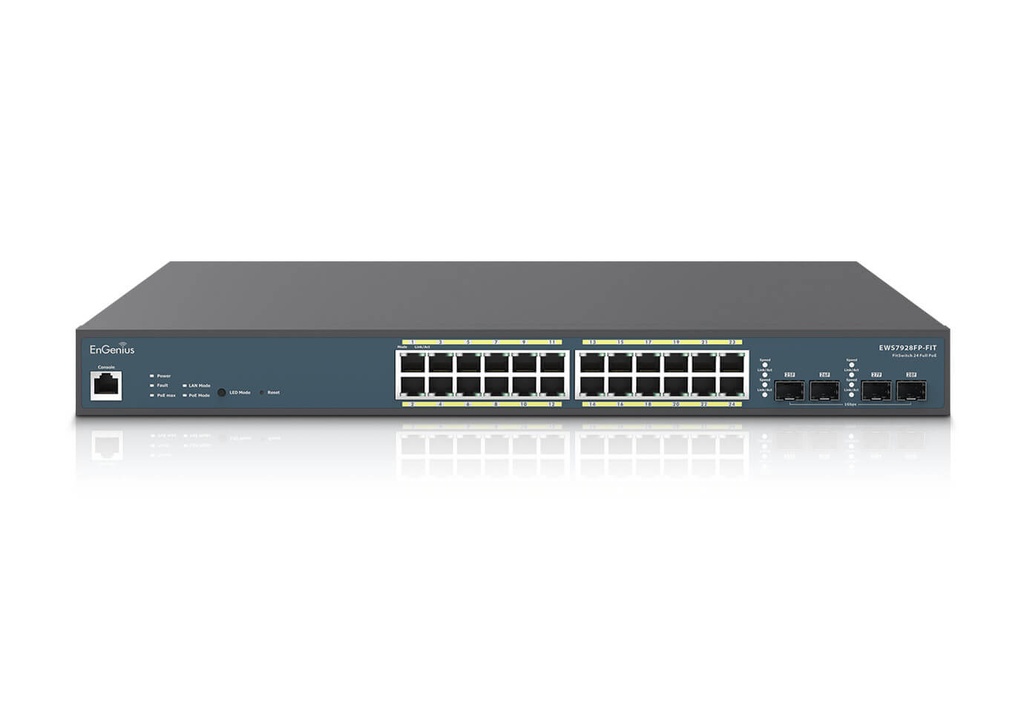

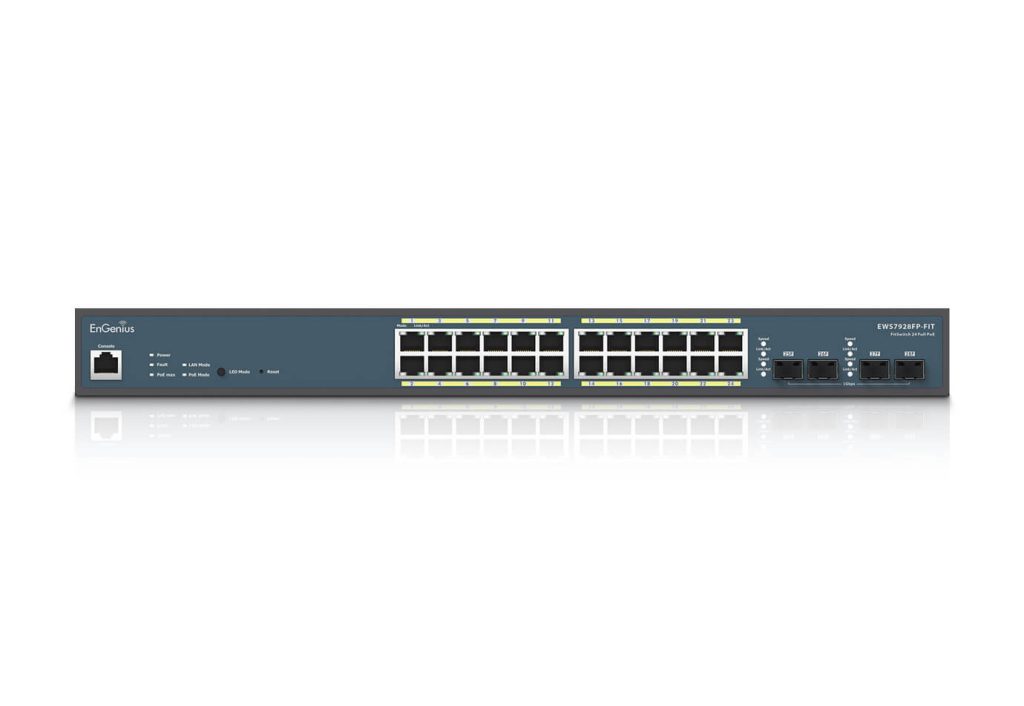

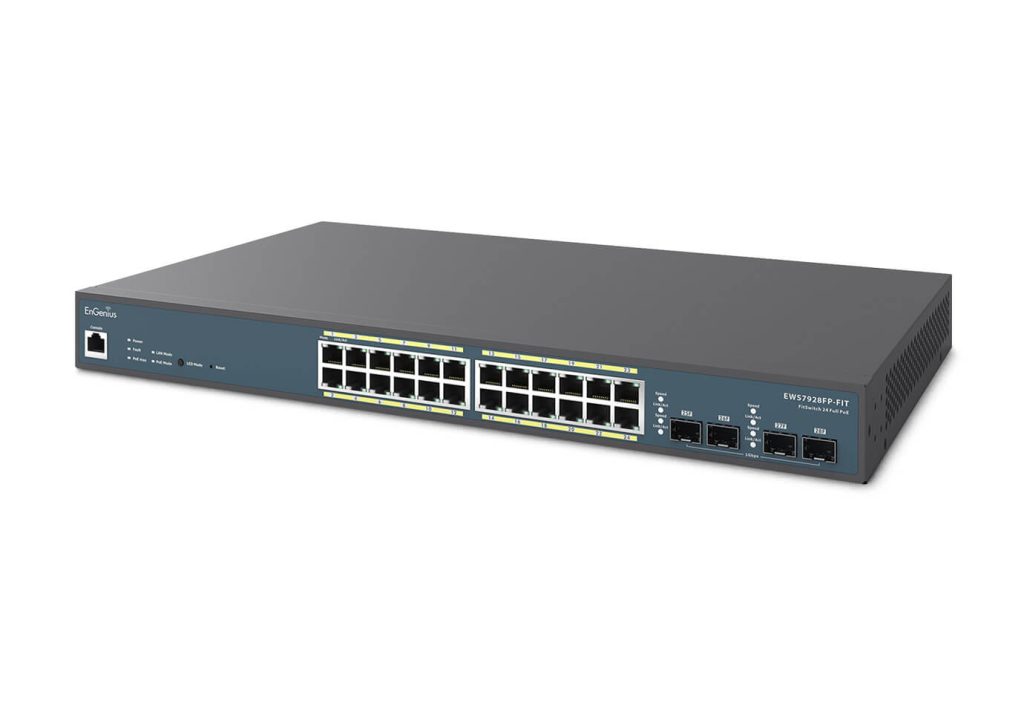

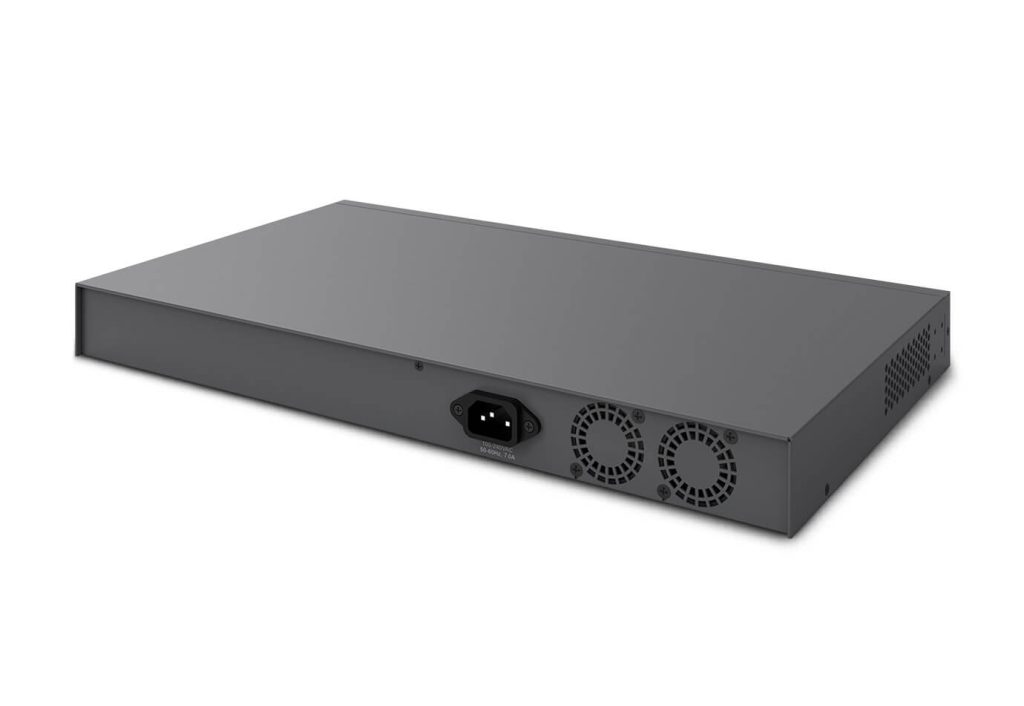

EnGenius EWS7928FP-FIT Fit 24-Port 410W PoE+ Switch
Wireless Management Switch with 24 GE PoE + 4 GE SFP
IEEE802.3at/af,
410w PoE power budget, internal power supply, 19inch 1U rackmountable
(Managed by FitXpress & FitCon 100)
Power Up Your Network with the EnGenius Fit 24-Port 410W PoE+ Switch
Limited Time Offer!
Upgrade your network infrastructure with the EnGenius Fit 24-Port 410W PoE+ Switch (EWS7928FP-FIT). This powerful switch provides high-speed connectivity, PoE+ capabilities, and advanced features to optimize your network performance.
Benefits of the EWS7928FP-FIT:
Expand Your Network: Connect up to 24 devices for a comprehensive network.
Power Multiple Devices: Use PoE+ to power compatible devices without separate power adapters.
Optimized Network Performance: Benefit from advanced Layer 2 features for efficient traffic management.
Flexible Management: Choose between cloud-based or on-premises management options.
Enhanced Security: Protect your network with built-in security features.
This product is no longer available.
The EnGenius Fit EWS7928FP-FIT Managed Switch is a PoE+ Layer 2 plus 24-port Gigabit switch with a 410W PoE budget and 4 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit managed switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.
Product Highlights
- High Port Density: Supports 24 PoE+ ports and 4 SFP ports.
- Robust Security: Advanced security features, including port security and RADIUS support.
- Flexible Management: Managed via a web GUI, CLI, and FitXpress mobile app.
- High Power Budget: Capable of delivering a total PoE budget of 410W.
Manage your network onsite or on-the-go through our FitXpress cloud-based mobile app or web portal. Additionally, FitController gives you greater control of your network using plug-n-play hardware with embedded network management software. Admins can easily view detailed analytics from a single pane of glass as well as monitor and troubleshoot issues instantly.
| Ports | Link/Activity/Speed (per Ethernet port) |
| Network Ports | 24 x 10/100/1000 Mbps Ports, 4 x 10/100/1000 Mbps SFP Ports |
| Temperature Range | Operating: 32°F to 104°F (0°C to 40°C); Storage: -40°F to 158°F (-40°C to 70°C) |
| Model | EWS7928FP-FIT |
| PoE Capable Ports | 1-24 (802.3af/at); All Gigabit Ethernet ports can output up to 30 Watts |
| SFP Ports | Link/Act LED |
| Brand | EnGenius |
| Flash Memory | 32MB |
| LED Indicators | Reset Button, Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 59 entries |
| IPv6 Static Route | Max. 5 entries |
| Security | 802.1X Radius Authentication Protocol, Web: HTTP/HTTPS, CLI: Telnet/SSH, Port Security, Radius Server, DoS Prevention |
| Quality of Service (QoS) | CoS Mapping, DSCP Mapping, Port CoS, Bandwidth Control, Storm Control, Advanced Mode: Class Mapping |
| Package Contents | 1x Fit L2+ Managed 24 Ports EWS7928P-FIT PoE+ Gigabit Switch, 1 x Power Cord, 1 x RJ45 Console Cable, 1 x Rack Mount Kit, Quick Start Guide, QR Code for FitXpress Cloud-Based Mobile App |
| Warranty | 1 Year |
| SNMP | RMON 1, 2, 3, 9 |
| Humidity (non-condensing) | 5% - 95% |
| Port Standards | 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3x Full-Duplex Flow Control |
| Total PoE Budget | 410 W (corrected from 240W) |
| Packet Buffer Memory | 512 KB |
| Address Database Size | 8,000 MAC Addresses |
| MAC Address Table | 8K |
| Jumbo Frame | 9K |
| Multicast Group | Max 256 groups |
| Port Security | Max. 256 Entries |
| SSL Certificate | Certificate/Key Update |
| L2 Features | 802.1Q VLAN tagging VLAN Table Port-based VLAN Voice VLAN GARP VLAN Registration Protocol 802.1d Spanning tree: RSTP CIST MSTP 802.3ad Link Aggregation Loopback Detection |
| Port Settings | Multicast Filtering EEE Port Isolation Port Mirror Jumbo Frames LLDP |
| System Settings | IP Settings: IPv4 Management IPv6 Management IPv4 Network ARP Table ARP Statistics Simple Network Time Protocol (SNTP) |
| Diagnostice | Cable Diagnostics Ping Test IPv6 Ping Test Trace Route Connection Diagnostic |
| Access Control List (ACL) | MAC Based ACL, MAC ACE, IPv4 ACL, IPv4 ACE, IPv6 ACL, IPv6 ACE, ACL (Port) Binding |
| MIB/RFC Standards | RFC1213, RFC1493, RFC1757, RFC2674, RFC2863 |
| public | true |
| Software Features (L3) | IGMP Snooping, MLD Snooping, DHCP Snooping, DHCP Relay, Static Route |
| Packaging Dimensions | Weight: 10.13 lbs, Width: 20.95” (532mm), Length: 13.63” (346mm), Height: 3.97” (101mm) |
| Device Dimensions | Weight: 7.82 lbs, Width: 17.32” (440 mm), Length: 10.23” (260 mm), Height: 1.73” (44 mm) |
