EnGenius:EWS356-Fit
EnGenius Fit Wireless Access Point (EWS356-FIT) | True Wi-Fi 6 Dual Band AX3000 | Cloud & App & OnPrem Control Options | WPA3, MU-MIMO, Mesh & Seamless Roaming | Power Adapter Not Included
EnGenius EWS356-FIT Description
The EnGenius EWS356-FIT is a cloud-managed, indoor wireless access point designed to provide reliable, high-performance Wi-Fi for small to medium businesses, schools, and other organizations. It supports the latest 802.11ac Wave 2 technology, delivering enhanced network speeds, improved capacity, and support for more connected devices. Operating in both 2.4 GHz and 5 GHz frequency bands, it ensures fast and efficient connectivity for various devices and applications.
The EWS356-FIT features MU-MIMO (Multi-User Multiple Input, Multiple Output) technology, which allows multiple devices to connect simultaneously without compromising speed. It also supports band steering and traffic shaping, ensuring that critical applications receive the necessary bandwidth for optimal performance. Additionally, it can be managed via the EnGenius FIT Cloud or FIT Controller, providing simplified network management and monitoring from any location.
With enterprise-grade security features like WPA3 encryption, it ensures a secure wireless network, while VLAN tagging allows for network segmentation to improve efficiency and security.
| Operating Temperature | 32º |
| Operation Modes | AP, Mesh |
| Brand | EnGenius |
| Power Source | - Power-over-Ethernet: 802.3at Input - 12VDC / 2A |

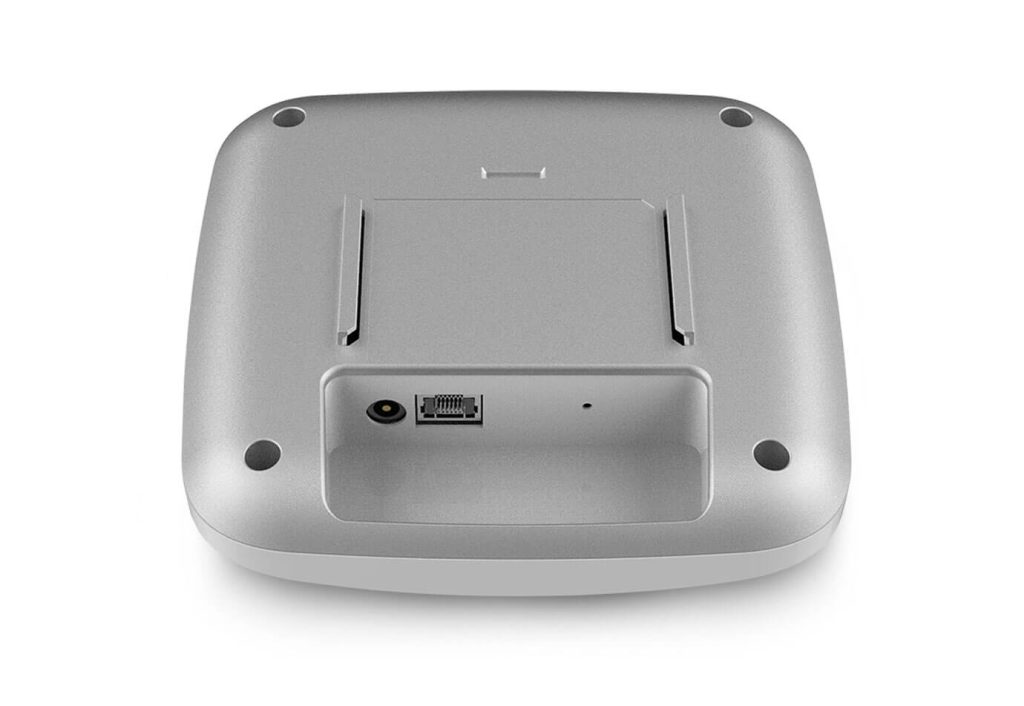

| Physical Interface | - 1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port - 1x DC Jack - 1 x Reset Button |
| LED Indicators | 1 x Color LEDs |
| MU-MIMO | - Up to 1200 Mbps for 5GHz - Up to 574 Mbps for 2.4GHz |
| Antenna | - 2 x 2.4 GHz: 4 dBi - 2 x 5 GHz: 5 dBi - Integrated Omni-Directional Antenna |
| Transmit Power | - Up to 21 dBm on 2.4 GHz - Up to 21 dBm on 5 GHz |
| Dimensions | - Weight: 0.83 lbs. (380 g) - Length: 6.30" (160 mm) - Width: 6.30" (160 mm) - Height: 1.18" (30 mm) |
| Package Contents | - 1 x EWS356-FIT Access Point - 1 x Ceiling Mount Base (9/16” & 15/16” Trail) - Screw Kits - Quick Installation Guide, Mobile App QR Code |
| Certifications | FCC, CE, IC |
| Humidity | 90% or less (non-condensing) |
| Warranty | 1 Year |
| Standards | - IEEE 802.11ax on 2.4 GHz - IEEE 802.11ax on 5 GHz - Backward compatible with 802.11a/b/g/n/ac |
| Processor | Qualcomm® Quad-Core ARM Cortex A53s @ 1.0GHz CPU |
| Max Power Consumption | 17.4W |
| Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Frequency Radio | - 2.4 GHz: 2400 MHz ~ 2482 MHz - 5 GHz: 5150 MHz ~ 5850 MHz |
| Radio Chains/Streams | 2x2:2 |
| SU-MIMO | Up to 1,774 Mbps wireless data rate to a single 11ax client on both radios |
| Supported Data Rates | - 802.11ax: Up to 2400 Mbps (5 GHz) and 1148 Mbps (2.4 GHz) - 802.11ac/n/a/b/g data rates |
| Supported Technologies | - 802.11ax: OFDMA - 802.11b: DSSS - 802.11ac/a/g/n: OFDM |
| Channelization | Supports VHT 20/40/80 MHz for 802.11ax/ac/n |
| Supported Modulation | - 802.11ax: BPSK to 1024-QAM - 802.11ac/n/a/g: BPSK to 256-QAM - 802.11b: BPSK, QPSK, CCK |
| Multiple BSSID | 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) | Complaint with IEEE 802.11e Standard, WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Wireless Security | - WPA3 - WPA2 Enterprise (AES), WPA2 AES-PSK - MAC Filtering - SSH Tunnel, Client Isolation |
| Packaging | - Weight: 1.10 lbs. (500 g) - Length: 10.35" (263 mm) - Width: 6.41" (163 mm) - Height: 1.49" (38 mm) |
