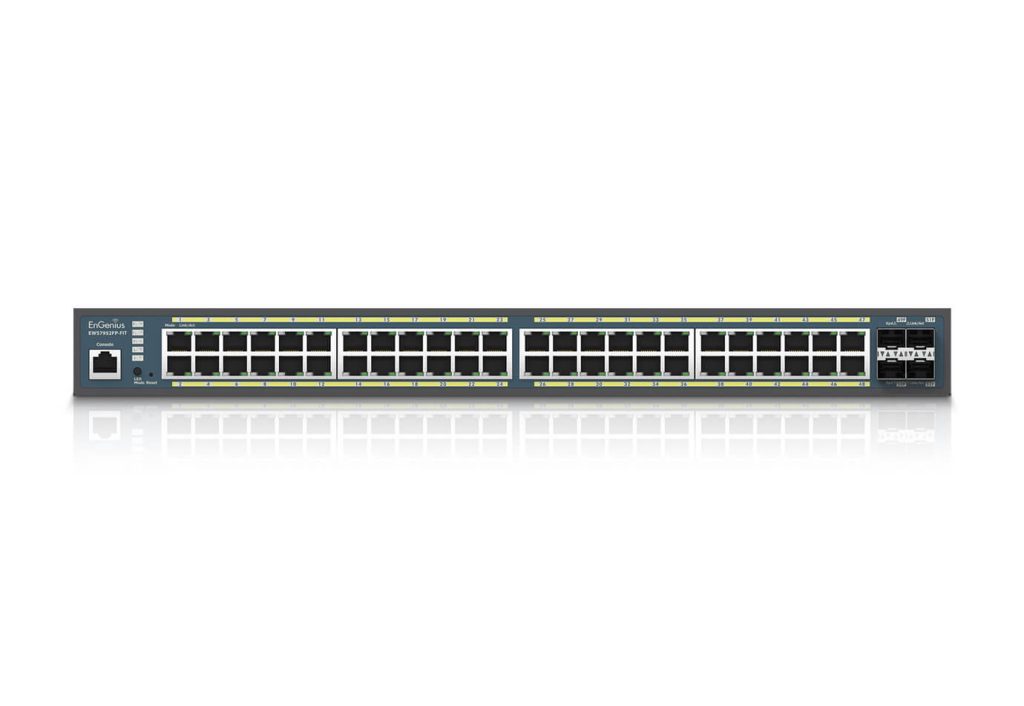

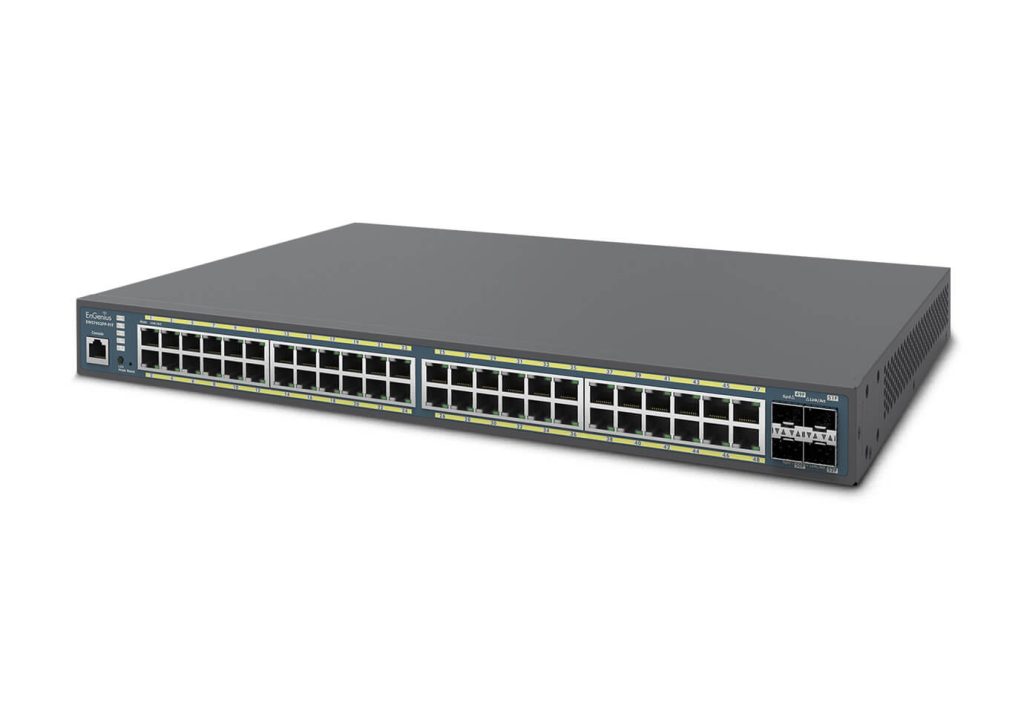

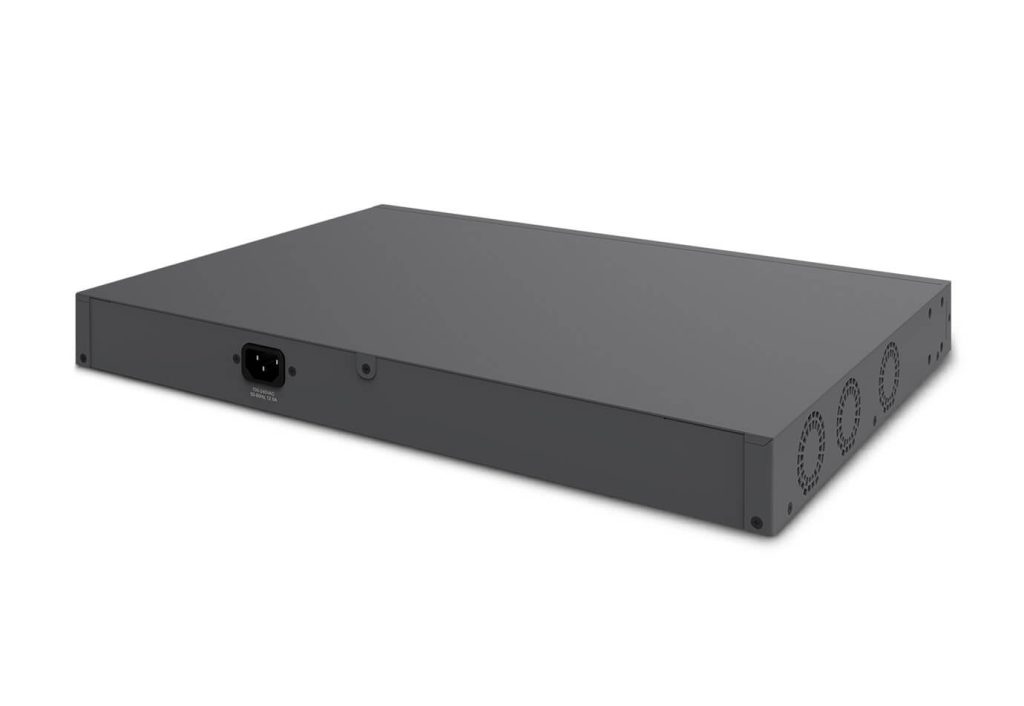

EnGenius EWS7952FP-FIT Fit 48-Port 740W PoE+ Switch
Wireless Management Switch with 48 GE + 4GE SFP,
IEEE802.3at/af, 740w PoE power budget, internal power supply,
19inch 1U rack-mountable (Managed by FitXpress & FitCon 100)
100% Original
30 Days Return
Free Delivery
The EnGenius Fit EWS7952FP-FIT Managed Switch is a 48-port Gigabit PoE+ Layer 2 plus switch with a 740W PoE budget and 4 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit managed switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.
- 48 10/100/1000 Base-T GbE Ports
- Full-featured Layer 2 plus Switching
- 802.3at/af PoE+ ready on all ports with 740W PoE budget
- 104 Gbps switching capacity
- Setup in minutes with App-based step by step instructions
- Quick-scan device register, remote monitoring and troubleshooting
- Real-time system metrics, analytics and remote configurations
- Hybrid switch supports multiple management options
- From anywhere cloud visibility and control
- Monitor a site or multiple sites with no recurring cost or licensing fee
- Security - access control list/port security; 802.1x authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
| Network Ports | 48 10/100/1000 Mbps Ports 4 10/100/1000 Mbps SFP Ports , Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot) |
| Temperature Range | Operating: 32 to 122°F/0 to 50°C Storage: -40 to 158°F/-40 to 70 °C |
| PoE Capable Ports | PoE Capable PortsPoE Capable Ports |
| SFP Ports | Link/Act LED |
| Brand | EnGenius |
| Switching Capacity | 104Gbps |
| SDRAM | 256MB |
| Flash Memory | 32MB |
| LED Indicators | Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED |
| Software Features (L3 Feature) | IGMP Snooping MLD Snooping DHCP Snooping DHCP Relay Static Route |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 59 entries |
| IPv6 Static Route | Max. 5 entries |
| Security | 802. 1X Radius Authentication Protocol Web: HTTP Service HTTPs Service Command Line Interface (CLI): Telnet Service SSH Service Port Security Radius Server DoS Prevention |
| Quality of Service (QoS) | CoS Mapping DSCP Mapping Port CoS Bandwidth Control Storm control Advanced Mode: Class Mapping |
| Package Contents | 1 x Fit L2+ Managed 48 Ports EWS7952FP-FIT PoE+ Gigabit Switch 1 x Power Cord 1 x RJ45 Console Cable 1 x Rack Mount Kit Quick Start Guide QR Code FitXpress Cloud-Based Mobile App QR Code |
| Certifications | CE, FCC, IC |
| Warranty | 1 Year |
| Packaging | Weight: 17.28 lbs. (7.83 kg) Width: 21.57” (548 mm) Length: 16.88” (429 mm) Height: 4.13” (105 mm) |
| Humidity (non-condensing) | 5% - 95% |
| Port Standards | 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 10000Base-T Ethernet 802.3x Full-Duplex Flow Control |
| Total PoE Budget | 740 W |
| Packet Buffer Memory | 1.5MB |
| Address Database Size | 8,000 MAC Addresses |
| MAC Address Table | 8K |
| Jumbo Frame | 9K |
| Multicast Group | Max 256 groups |
| Port Security | Max 256 groups |
| SSL Certificate | Certificate/Key Update |
| L2 Features | 802.1Q VLAN tagging VLAN Table Port-based VLAN Voice VLAN GARP VLAN Registration Protocol 802.1d Spanning tree: RSTP CIST MSTP 802.3ad Link Aggregation Loopback Detection |
| Port Settings | Multicast Filtering EEE Port Isolation Port Mirror Jumbo Frames LLDP |
| System Settings | IP Settings: IPv4 Management IPv6 Management IPv4 Network ARP Table ARP Statistics Simple Network Time Protocol (SNTP) |
| Analyze | Log: Local Logging Remote Logging |
| Diagnostice | Cable Diagnostics Ping Test IPv6 Ping Test Trace Route Connection Diagnostic |
| Access Control List (ACL) | MAC Based ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL (Port) Binding |
| SNMP) | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| MIB/RFC Standards | RFC1213 RFC1493 RFC1757 RFC2674 RFC2863 |
| Device | Weight: 14.15 Ibs. (6.41kg) Width: 17.32” (440 mm) Length: 12.20” (310 mm) Height: 1.73” (44 mm) |
