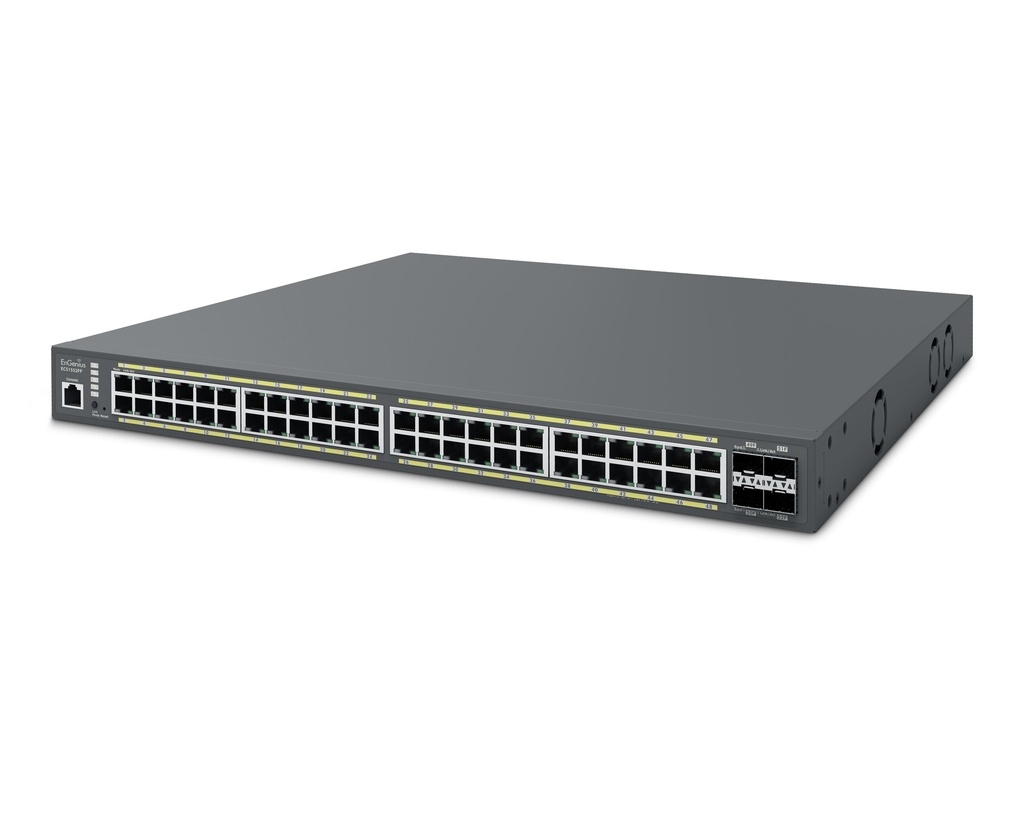

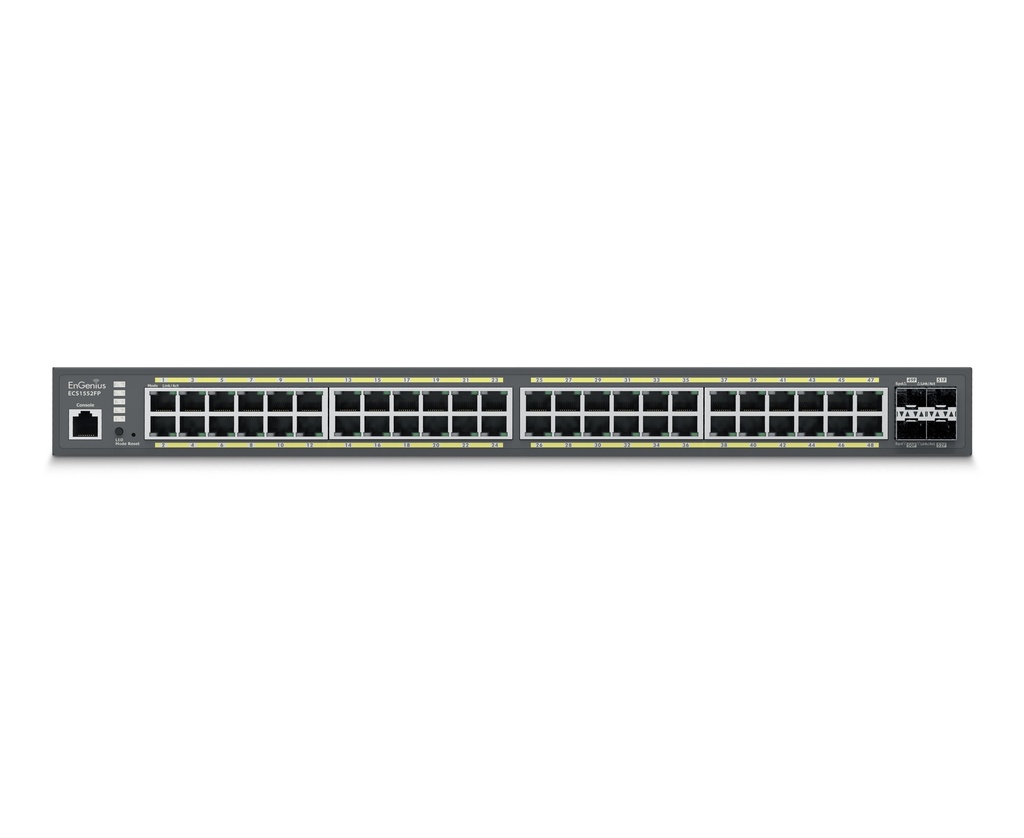

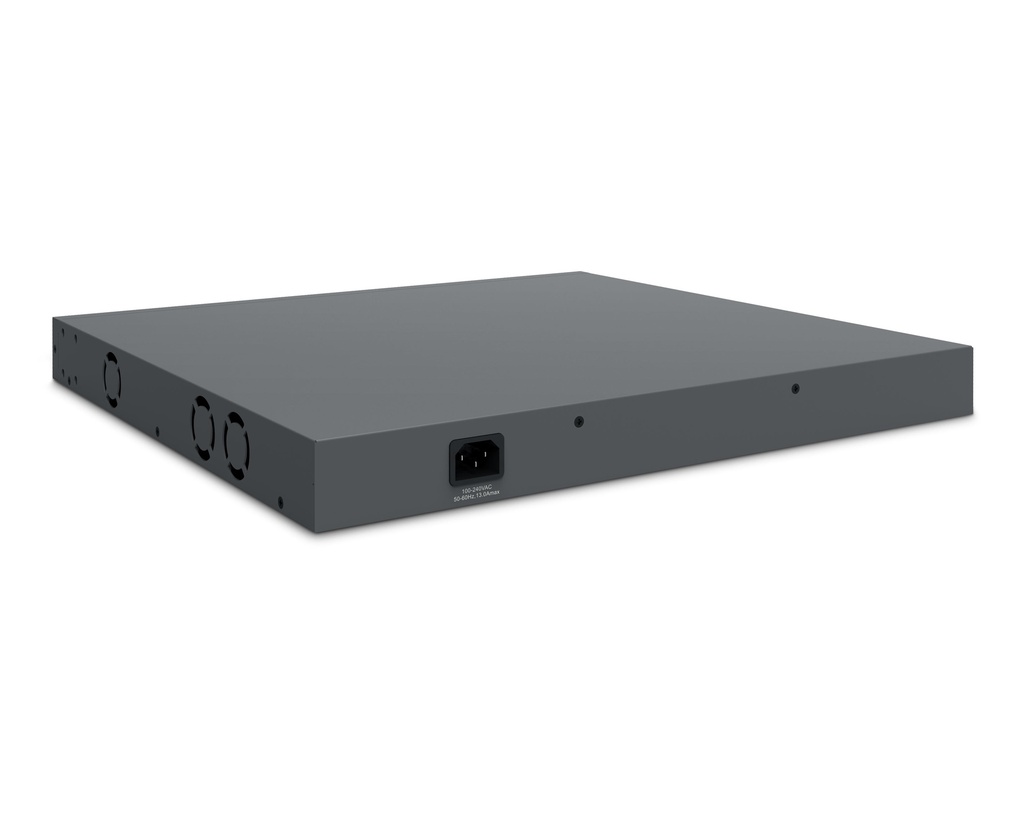

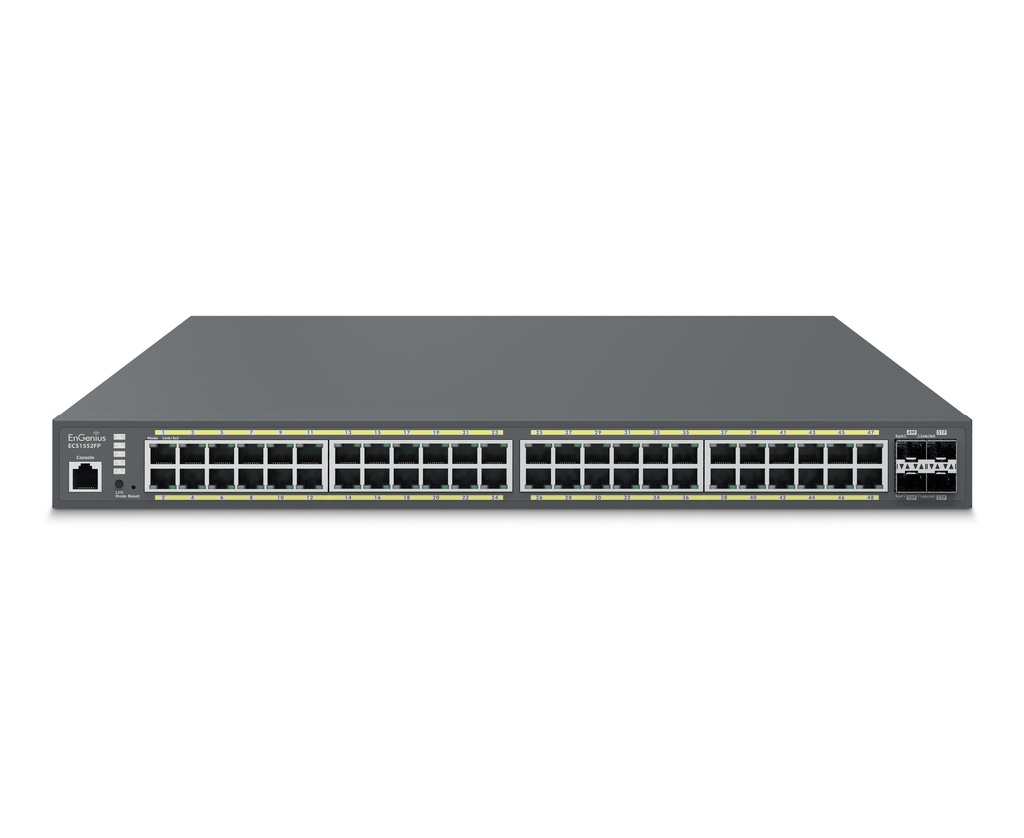

Cloud Managed 740W PoE 48Port Network Switch

Coud Management Switch with 48 GE + 4 10GE SFP+, IEEE802.3at/af, 740w PoE power budget, internal power supply, 19inch 1U rack-mountable

Power Up Your Large Network with the EnGenius ECS1552FP

Limited Time Offer!

Upgrade your network infrastructure with the EnGenius ECS1552FP Cloud-Managed 740W PoE 48-Port Network Switch. This powerful switch provides centralized management, high-speed connectivity, and PoE+ capabilities, making it ideal for large-scale deployments.

Benefits of the ECS1552FP:

Centralized Management: Manage your network from anywhere with EnGenius' cloud-based platform.
High-Speed Connectivity: Connect up to 48 devices for a comprehensive network.
Power Multiple Devices: Use PoE+ to power compatible devices without separate power adapters.
Optimized Network Performance: Benefit from advanced Layer 2 features for efficient traffic management.
Enhanced Security: Protect your network with built-in security features.

$ 852.12 852.12 USD $ 852.12

$ 852.12

($ 0.00 / Unit)
  • Network Ports
  • Network Ports
  • Temperature Range
  • Trust Mode
  • PoE Capable Ports
  • Brand
  • Switching Capacity
  • SDRAM
  • Flash Memory
  • Power Source
  • LED Indicators
  • Multiple IP Interface
  • ARP Table
  • Static ARP
  • IPv4 Static Route
  • IPv6 Static Route
  • Package Contents
  • Warranty
  • SNMP
  • Humidity (non-condensing)
  • Dimensions & Weights Device
  • Port Standards
  • Total PoE Budget
  • MAC Address Table
  • Jumbo Frame
  • Multicast Group
  • Port Security
  • SSL Certificate
  • Access Control List (ACL)
  • RMON
  • Network Management
  • MLD SnoopingD
  • QoS-Number of Priority Queues Supported
  • Scheduling Mechanism
  • Bandwidth Control
  • Web Graphical User Interface (GUI)
  • System Time
  • Common L2 Features
  • public

This combination does not exist.

Terms and Conditions
100% Original
30 Days Return
Free Delivery
Share :

The EnGenius ECS1552FP is a powerful and versatile cloud-managed network switch designed to meet the demanding needs of large businesses and enterprise environments. With its 48 Gigabit Ethernet ports, all with PoE+ capabilities, and a total PoE budget of 740W, the ECS1552FP is ideal for powering and connecting a large number of network devices.

EnGenius Cloud ECS1552FP , a 48-Port Gigabit PoE+ Layer 2+ Switch with a 740W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

  • Full-featured layer 2+ switching
  • 48 10/100/1000 Base-T GbE Port
  • 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
  • 176 Gbps Switching capacity
  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports

Available with Hardware v2 and Later

  • PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
  • PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
  • Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades



Network Ports 48 10/100/1000 Mbps Ports + 4x SFP+ Ports , Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)
Temperature Range Operating: 32ºF~122ºF (0 ºC~50 ºC)
Trust Mode Cos/802.1p DSCP CoS/802.1p-DSCP
PoE Capable Ports 1-48 (802.3at/af)
Brand EnGenius
Switching Capacity 176Gbps
SDRAM 512MB
Flash Memory 128MB
Power Source 100 ~ 240VAC, 50-60Hz
LED Indicators Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route Max. 21 entries
Package Contents 1x ECS Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit
Warranty 2 Years
SNMP SNMP v1/v2c/v3 Support
Humidity (non-condensing) Operating: 5% - 95%
Dimensions & Weights Device Weight: 10.5 lbs. (4.76 kg) Width: 17.32” (440 mm) Length: 10.23” (260 mm) Height: 1.73” (44 mm)
Port Standards 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control
Total PoE Budget 740W
MAC Address Table 32K
Jumbo Frame 10K
Multicast Group Max 256 groups
Port Security Max. 256 Entries
SSL Certificate Certificate/Key Import
Access Control List (ACL) MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL
RMON RMON 1,2,3,9
Network Management EnGenius Cloud Local Web GUI SkyKey ezMaster
MLD SnoopingD MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/ Egress)
Web Graphical User Interface (GUI) HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree Loopback Detection Multicast Filitering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficeient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree
