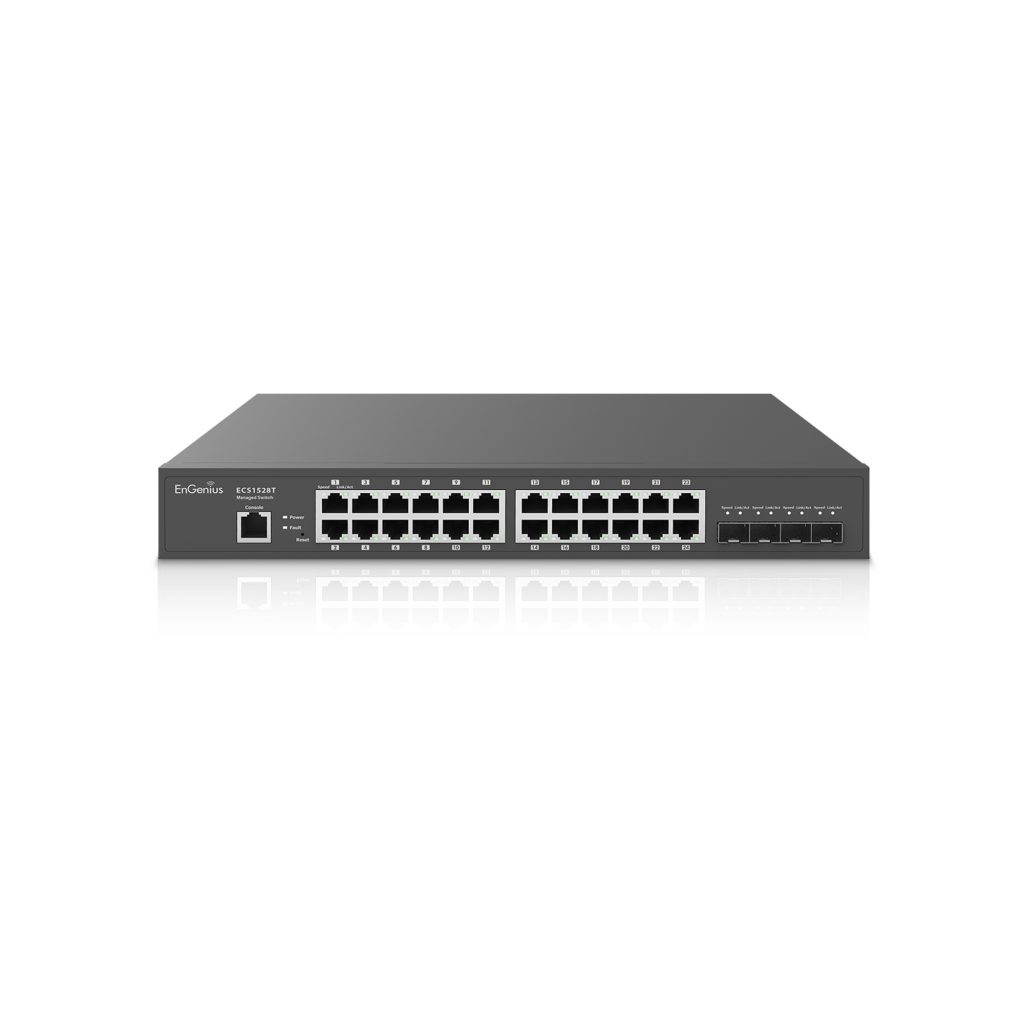

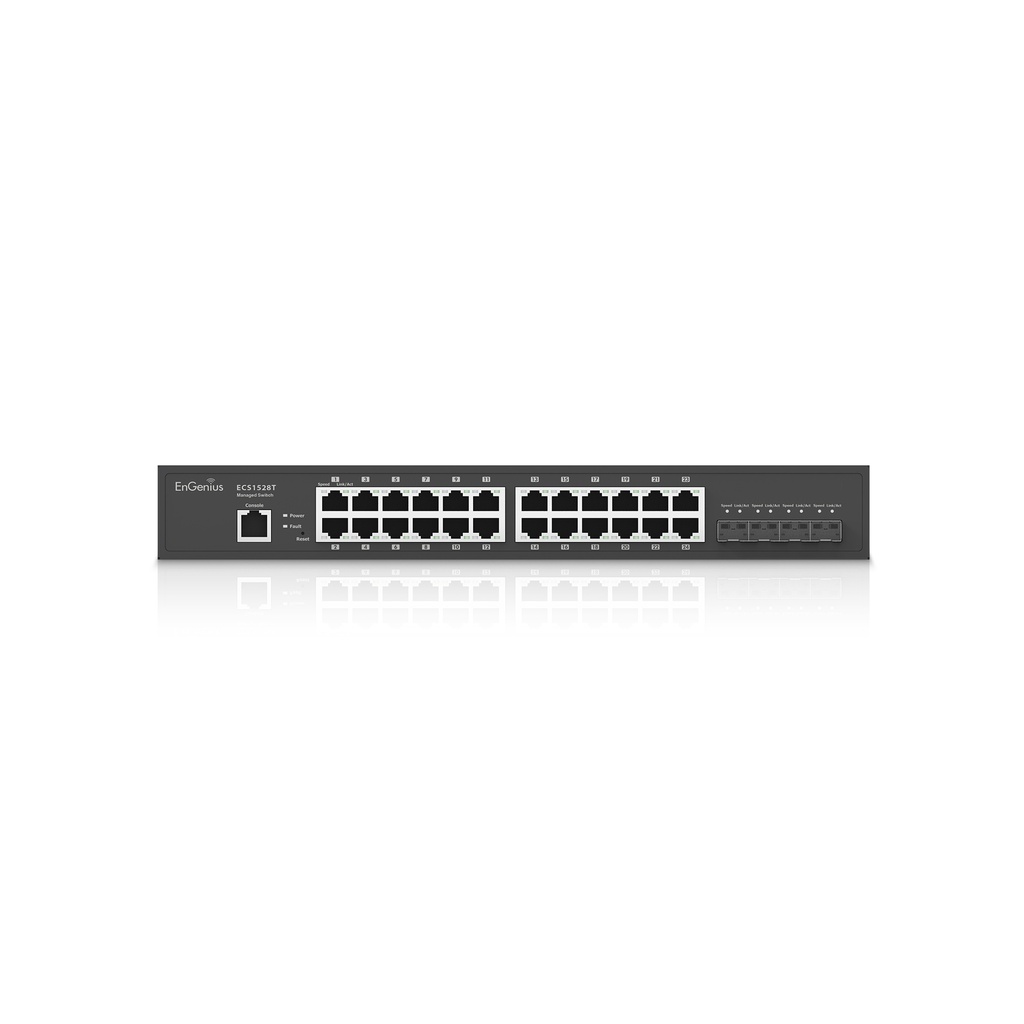

EnGenius-ECS1528T Cloud Managed 24-Port Gigabit Switch with 4 SFP+ Ports
EnGenius Cloud Managed Layer 2+ Switch, ECS1528T, is a reliable and easy-to-manage 24-Port Gigabit and 4-Port SFP+ uplink switch that provides high-speed connectivity for your network devices. Its zero-touch provisioning and centralized cloud management make it easy to set up and manage your network from anywhere, anytime. With its Voice-VLAN feature and robust security, you can ensure quality voice and video traffic while protecting against malicious attacks.
24x gigabit ports for high-speed connections
4x 10Gbps SFP+ uplink ports for bandwidth-intensive applications
13" housing compact size design
Zero touch provisioning, centralized cloud management and visualized monitoring
Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
Optimized for quality voice and video traffic with Voice-VLAN feature
The EnGenius ECS1528T is a high-performance cloud-managed network switch designed to meet the demanding needs of businesses. With its 24 Gigabit Ethernet ports and 4 SFP+ slots, the ECS1528T provides exceptional connectivity and flexibility for both copper and fiber-optic networks.
The EnGenius Cloud ECS1528T 24-port 13” 1U rackmount compact gigabit layer 2+ switch with 4 SFP+ uplink ports and multiple management options for large businesses to easily configure, monitor, and manage. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget.
- Full-featured layer 2+ switching
- 24 10/100/1000 Base-T GbE Ports
- 13” 1U rackmount compact design
- 128 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
- Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
| Network Ports | 24 10/100/1000 Mbps Ports 4 SFP+ Ports , Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot) |
| Temperature Range | Operating: 32ºF~122ºF (0 ºC~50 ºC) |
| Trust Mode | Cos/802.1p DSCP CoS/802.1p-DSCP |
| Brand | EnGenius |
| Switching Capacity | 128Gbps |
| SDRAM | 512MB |
| Flash Memory | 128MB |
| Power Source | 100 ~ 240VAC, 50-60Hz |
| LED Indicators | Power LED Fault LED |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 63 entries IPv6 Static Route Max. 21 entries |
| IPv6 Static Route | Max. 21 entries |
| Package Contents | 1x Cloud Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit |
| Certifications | CE, FCC, IC |
| Warranty | 2 Years |
| SNMP | SNMP v1/v2c/v3 Support |
| Humidity (non-condensing) | Operating: 5% - 95% |
| Dimensions & Weights Device | Weight: 5.07 lbs. (2.3 kg) Width: 9.06” (230 mm) Length: 12.99” (330 mm) Height: 1.73” (44 mm) |
| Port Standards | 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3bz 2.5G Base-T Ethernet 802.3x Full-Duplex Flow Control |
| MAC Address Table | 16K |
| Jumbo Frame | 9K |
| Multicast Group | Max 256 groups |
| Port Security | Max. 256 Entries |
| SSL Certificate | Certificate/Key Import |
| Access Control List (ACL) | MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL |
| RMON | RMON 1,2,3,9 |
| Network Management | EnGenius Cloud Local Web GUI |
| MLD SnoopingD | MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported | Queue 8 |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/ Egress) |
| Web Graphical User Interface (GUI) | HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1d Spanning tree Loopback Detection Multicast Filtering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree |
