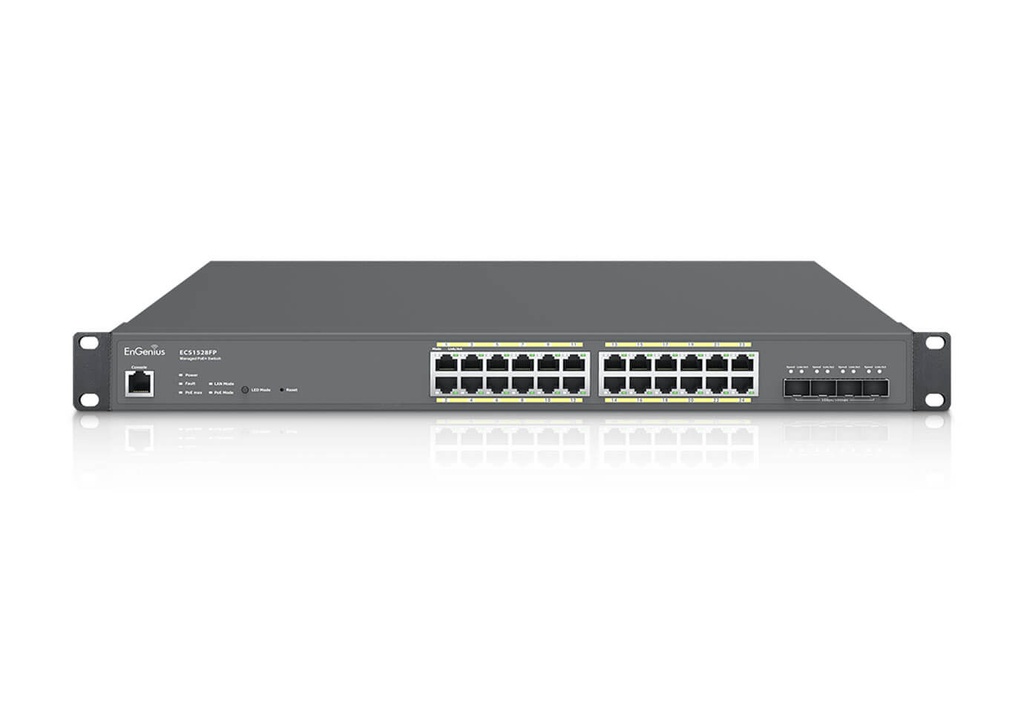

EnGenius: Cloud Managed 24 Port PoE+ Switch Gigabit 410W
Coud Management Switch with 24 GE + 4 10GE SFP+, IEEE802.3at/af, 410w PoE power budget, internal power supply, 19inch 1U rack-mountable
100% Original
30 Days Return
Free Delivery
The ECS1528FP is a cloud-managed 24-port Gigabit PoE+ switch with a 410W power budget and 4 10-Gigabit SFP+ uplink ports. This switch is designed for small and medium-sized businesses (SMBs) that need a high-performance, flexible, and easy-to-manage network solution.
Description:
- Cloud-managed: The ECS1528FP can be managed either locally using a web interface or remotely using the EnGenius Cloud platform. This gives you the flexibility to manage your network from anywhere.
- 24-port Gigabit PoE+: All 24 ports on the ECS1528FP are Gigabit PoE+, which means they can provide up to 30 watts of power to connected devices. This makes it ideal for powering IP cameras, wireless access points, and other PoE-enabled devices.
- 4 10-Gigabit SFP+ uplink ports: The ECS1528FP has 4 10-Gigabit SFP+ uplink ports, which provide high-speed connectivity to other network devices. This is ideal for connecting to servers, storage, and other high-bandwidth devices.
- Layer 2+ features: The ECS1528FP supports a variety of Layer 2+ features, including VLANs, QoS, and IGMP snooping. This allows you to segment your network, prioritize traffic, and manage multicast traffic.
- EnGenius Cloud: The ECS1528FP can be managed using the EnGenius Cloud platform. This cloud-based platform provides a variety of features, including remote monitoring, configuration, and firmware updates.
| Network Ports | 24 10/100/1000 Mbps Ports, 4 SFP+ Ports |
| Brand | EnGenius |
| Switching Capacity | 128 Gbps |
| Power Source | 100 ~ 240VAC, 50-60Hz |
| LED Indicators | Power, Fault, Ports (Link/Activity/Speed) |
| Dimensions | Weight: 5.07 lbs. (2.3 kg), Width: 9.06” (230 mm), Length: 12.99” (330 mm), Height: 1.73” (44 mm) |
| Package Contents | Cloud Managed Gigabit Switch, Quick Installation Guide, Power Cord, RJ45 Console Cable, Rack Mount Kit |
| Certifications | CE, FCC, IC |
| Warranty | 2 Years |
| Port Standards | 10Base-T, 100Base-TX, 1000Base-T, 2.5G Base-T |
| Common L2 Features | Network Management, MAC Address Table, Jumbo Frame, Multicast Group, MLD Snooping, QoS, Port Security, ACL, Web GUI, SNMP, RMON, System Time, Common L2 Features |
| Full-Duplex Flow Control | 802.3x |
| Internal Memory | SDRAM: 512 MB, Flash Memory: 128 MB |
| L3 Features | Multiple IP Interface, ARP Table, Static ARP, IPv4/IPv6 Static Route |
| Environment | Temperature: 32ºF~122ºF (0 ºC~50 ºC), Humidity: 5% - 95% |
