EnGenius: Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch

Cloud Management SFP+ Switch 12xSFP+ Port Fiber Switch, 1xConsole Port & 2 LED

$ 448.92 448.92 USD $ 448.92

$ 448.92

($ 0.00 / Unit)
  • Network Ports
  • Network Ports
  • Temperature Range
  • Trust Mode
  • Brand
  • Switching Capacity
  • SDRAM
  • Flash Memory
  • Power Source
  • LED Indicators
  • Multiple IP Interface
  • ARP Table
  • Static ARP
  • IPv4 Static Route
  • IPv6 Static Route
  • Package Contents
  • Certifications
  • SNMP
  • Packaging
  • Humidity (non-condensing)
  • Dimensions & Weights Device
  • Port Standards
  • MAC Address Table
  • Jumbo Frame
  • Multicast Group
  • Port Security
  • SSL Certificate
  • Access Control List (ACL)
  • RMON
  • Network Management
  • MLD SnoopingD
  • QoS-Number of Priority Queues Supported
  • Scheduling Mechanism
  • Bandwidth Control
  • Web Graphical User Interface (GUI)
  • System Time
  • Common L2 Features
  • public

This combination does not exist.

Terms and Conditions
100% Original
30 Days Return
Free Delivery
Share :

Specifications:

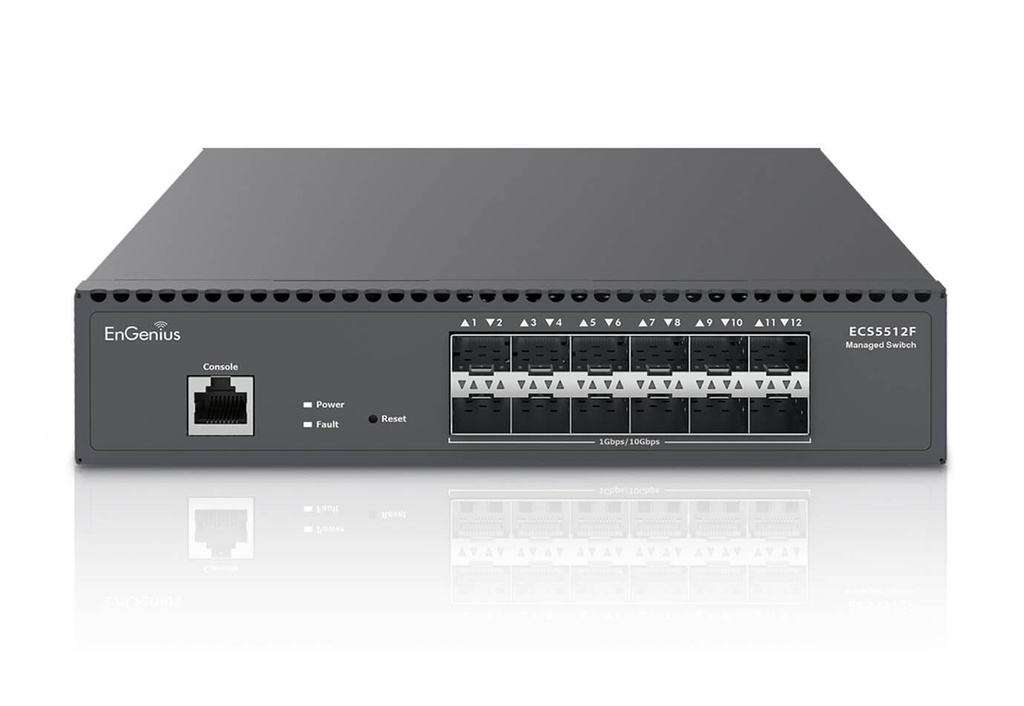

The EnGenius cloud-managed ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.

  • (12) 10 Gigabit SPF+ Ports
  • Full-Featured Layer 2+ Ethernet Switch
  • 240 Gbps Switching Capacity
  • Half Rack 1U (9.5”) Mount Expandable to Two Switches 1U (19") per Rack
  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting
  • Advanced View Displays Network Topology with Devices and Relationships
  • Hybrid Switch Supports Multiple Management Options
  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency
  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
  • Voice VLAN for fast, reliable deployment of VoIP services



Network Ports 12 SFP+ Ports , Link/Activity/Speed (per SFP slot)
Temperature Range Operating: 32ºF~122ºF (0 ºC~50 ºC)
Trust Mode Cos/802.1p DSCP CoS/802.1p-DSCP
Brand EnGenius
Switching Capacity 240Gbps
SDRAM 512MB
Flash Memory 128MB
Power Source 100 ~ 240VAC, 50-60Hz
LED Indicators Power LED Fault LED
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route Max. 21 entries
Package Contents 1x Cloud Managed Fiber Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Half-Rack Mount Kit 1x 1U Rack Mount Kit
Certifications FCC, CE, IC
SNMP SNMP v1/v2c/v3 Support
Packaging Weight: 2.6kg (5.74 lbs.) Width: 330mm (13”) Length: 350mm (13.78”) Height: 130mm (5.12”)
Humidity (non-condensing) Operating: 5% - 90%
Dimensions & Weights Device Weight: 1.39kg (3.07 lbs.) Width: 210mm (8.27”) Length: 230mm (9.06”) Height: 44mm (1.74”)
Port Standards 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3bz 2.5G Base-T Ethernet 802.3x Full-Duplex Flow Control
MAC Address Table 16K
Jumbo Frame 9K
Multicast Group Max 256 groups
Port Security Max. 256 Entries
SSL Certificate Certificate/Key Import
Access Control List (ACL) Ingress MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Action: Permit/Deny Time base ACL
RMON RMON 1,2,3,9
Network Management EnGenius Cloud Local Web GUI
MLD SnoopingD MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/ Egress)
Web Graphical User Interface (GUI) HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree Loopback Detection Multicast Filtering Multicast Group IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN Dynamic VLAN VLAN Group CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/Backup Simple Network Time Protocol (SNTP) SYSLOG
